IEC 61439-6 UL 1000V 6300A LV Sandwich Busduct

Product Categories
Wetown Electric Group Co.,Ltd.
Contact Now

IEC 61439-6 UL 1000V 6300A LV Sandwich Busduct

Brand Name : WETOWN

Model Number : LV

Certification : UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Packaging Details : Standard package

Delivery Time : 20 working days after confirmation of all technical data and advance payment

Supply Ability : 300 Pieces per Month

Conductor Type : Copper/Aluminium Conductor

Rated Current : 250-6300A

Frequency : 50Hz/60Hz

Rated Voltage : 1000V

IP : IP54/IP65/IP66

Product Series : LV Series Compact Busway

Design Criteria : IEC61439-6

Product Type : Low Voltage Busway

Contact Now

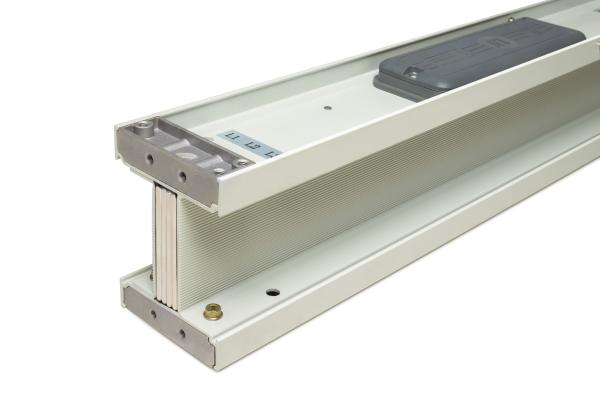

LV sandwich busduct 250 - 6300A , 1000V

True sandwich structure for the design and construction. Bus bars for plug in length are welded in place by state -of-the-art welding processes. Bus tabs, arranged compactly without bending and silver plated, to achieve the performance of superior heat dissipation, lower temperature rise and elimination of "chimney effect".

The attachment of LV series busway system is Tap—Off Box:

  • The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes.
  • Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces.
  • Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator.
  • Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer.

​

Why choose wetown:

  • Reliable high quality conductors,electrolytic copper,copper bar purity above 99.90%
  • More reliable IP with two pieces of housing design.
  • High corrosion resistance casing.
  • Intelligent design with smart devive.
  • Smart joint design-temperature intelligent system.
  • Unique error-proof design.

NO. Item Tech data
1 Conductor Type Copper/Aluminium Conductor
2 Rated Current(A) 250-6300A
3 Frequency(Hz) 50Hz/60Hz
4 Rated Voltage(V) 1000V
5 IP IP54/IP65/IP66
6 Product Series LV Series Compact Busway
7 Design Criteria IEC61439-6
8 Product Type Low Voltage Busway
9 Certification UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV
10 Attachment plug-in box

​IEC 61439-6 UL 1000V 6300A LV Sandwich Busduct

FAQ

Q: Are your manufacturer or trading company?

A: Wetown Group is a leading and professional manufacturer of electrical devices for 40 years.

Q: Why the company name of your alibaba page shows another company, instead of wetown electric group?

A: Our comapny's director prefers to offline electric exhibitions. So our company Wetown is not a VIP seller membership on Alibaba, and I have to rent a sub account from other company to promote our products. That's why the company names differ.

Q: What is your payment term?

A: Our usual payment is 30%TT in advance ,70%TT before shipment (the bill of landing). For small quantity, we also accept Paypal, Western Union and other ways can also be done after discussion.

Q: Could I buy sample first or small order and is the sample fee refundable?

A: Of course. We accept sample and small order especially for new customs and of course the sample fee will be refundable when order confirmed.

Q: When can delivery from ordering?

A: The delivery time depend on the quantity you ordered, generally about 15-45 days after deposit of payment.
