Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon

Product Categories
Wetown Electric Group Co.,Ltd.
Contact Now

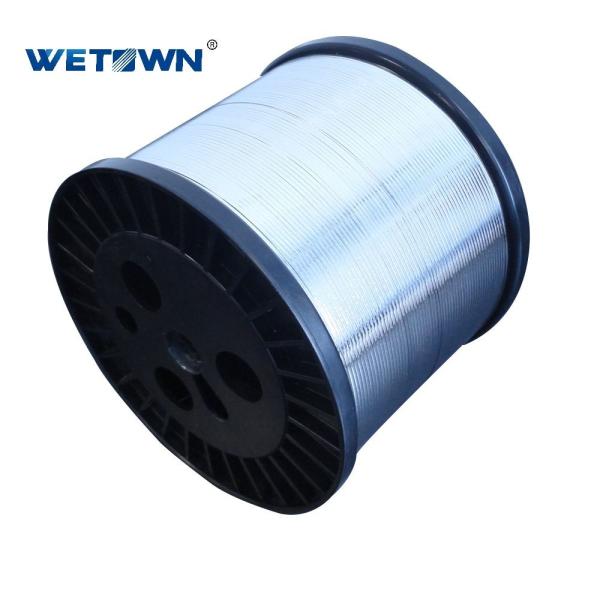

Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon

Brand Name : WETOWN

Certification : KEMA,ASTA,CE,GOST-R,CEDIT,TUV

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Packaging Details : Standard package

Delivery Time : 20 working days after confirmation of all technical data and advance payment

Supply Ability : 300 Pieces per Month

Standard size : thickness:0.08-0.6mm width:0.7-8.0mm

Conductor Type : Cu

Surface treatment : Tin plated or customized

Purity : ≥99.98%

Design Standard : GB/T 11091-2005,GB/T 2059-2008,GB/T 351-1995,GB/T 4340.1/2/3-1999,GB/T 228-2002

Yield strength : ＜90 MPa

Product Type : Interlinked Ribbon

Product Series : Photovoltaic welding

Contact Now

Interlinked Ribbon , thickness : 0.08 - 0.6mm width : 0.7 - 8.0mm

The photovoltaic welding strip is specially developed for the solar modules. Wetown ensures the control of raw materials, with building a complete production chain.

Interlinked Ribbon is mainly soldered to the main grid line of the cell, it is used to connect the solar cell, collect and transmit the Photovoltaic modules current.

Why choose wetown:

  • Can be customized.
  • Stable quality.
  • Standard production chain and automatic line ensure fast delivery.
  • Passed SGS testing certification, fully in line with the European ROHS directive standards.

​

Width (mm) Spec. Copper base thickness Tin thickness Width Tolerance(mm) Thickness Tolerance(mm) Yield strength(MPa) Tensile strength(MPa) Extensibility (%) Bending (mm/m)
1.2 0.18x1.2 0.13 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.20x1.2 0.15 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.23x1.2 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x1.2 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x1.2 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
1.3 0.23x1.3 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x1.3 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x1.3 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
1.5 0.18x1.5 0.13 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.20x1.5 0.15 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.23x1.5 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x1.5 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x1.5 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
1.6 0.18x1.6 0.13 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.20x1.6 0.15 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.23x1.6 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x1.6 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x1.6 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.30x1.6 0.25 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
1.8 0.18x1.8 0.13 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.20x1.8 0.15 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.23x1.8 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x1.8 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x1.8 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.30x1.8 0.25 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
2 0.18x2.0 0.13 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.20x2.0 0.15 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.23x2.0 0.18 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.25x2.0 0.2 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.27x2.0 0.22 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5
0.30x2.0 0.25 0.025 ±0.05 ±0.01 ＜90 ＞ 150 ＞25 ＜5

Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon


Product Tags:

8.0mm PV Ribbon



0.6mm Interlinked Ribbon



0.6mm PV Ribbon


Quality Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon wholesale

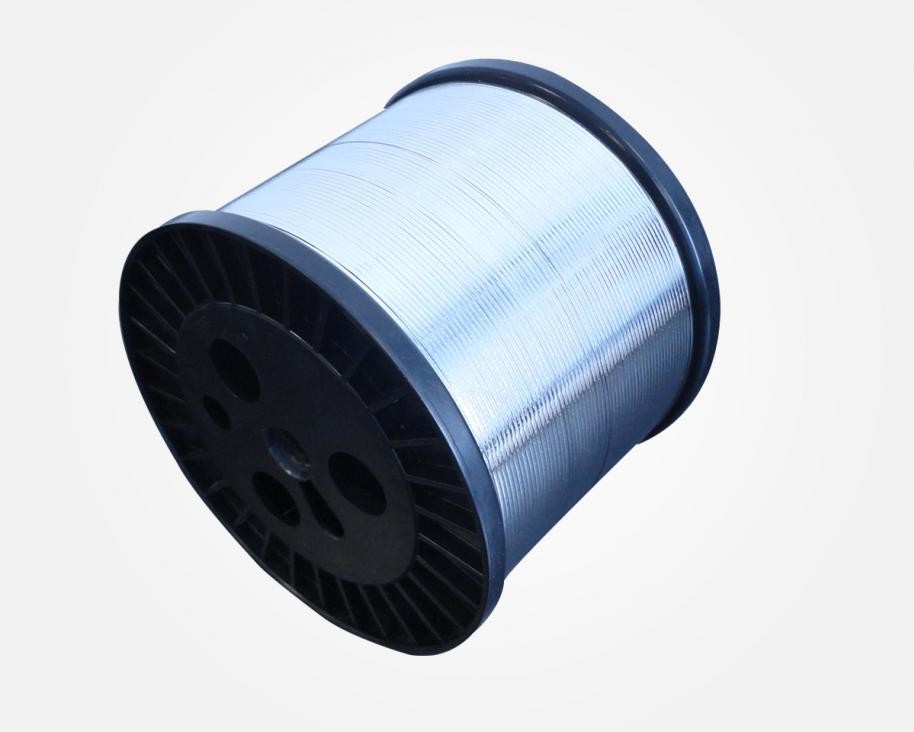

Tin Plated 8.0mm 0.6mm Interlinked PV Ribbon Images
