LV compact busway , Copper , Aluminium Conductor

Name: LV compact busway Copper Aluminium Conductor
Brand: WETOWN
Price: 1 USD

Brand Name : WETOWN

Model Number : LV

Certification : UL,KEMA,ASTA,CE,GOST-R,CEDIT,TUV

Place of Origin : CHINA

MOQ : 1 Set

Price : Negotiable

Packaging Details : Standard package

Delivery Time : 20 working days after confirmation of all technical data and advance payment

Supply Ability : 300 Pieces per Month

Rated Current : 250-6300A

Frequency : 50Hz/60Hz

Rated Voltage : 1000V

IP : IP54/IP65/IP66

Product Series : LV Series Compact Busway

Design Criteria : IEC61439-6

Contact Now

LB Low Power Busway , 3P4W , 3P5W

The attachment of LV series busway system is Tap—Off Box:

The plug-in box can provide 16A ~ 1600A tapping current with 7 different sizes.
Designed with support positioning device to ensure accurate positioning and support the weight of the plug-in box to protect the pins from external forces.
Designed with the double interlocking mechanism, and the power-on state cannot be inserted and removed, thus ensuring the personal safety of the operator.
Any type of circuit breaker can be equipped in the box,the breakers type and brand are optional for customer.

LV series busway system is the star product. It’s a reliable and efficient power distribution system with sandwich construction and superior performance. It is a safe and robust power distribution system with high electrical efficiency, low voltage drops, high mechanical strength.

LV series busway system is applicated to commercial buildings, high-rise, industrial plants,data centers, rail transit, etc.

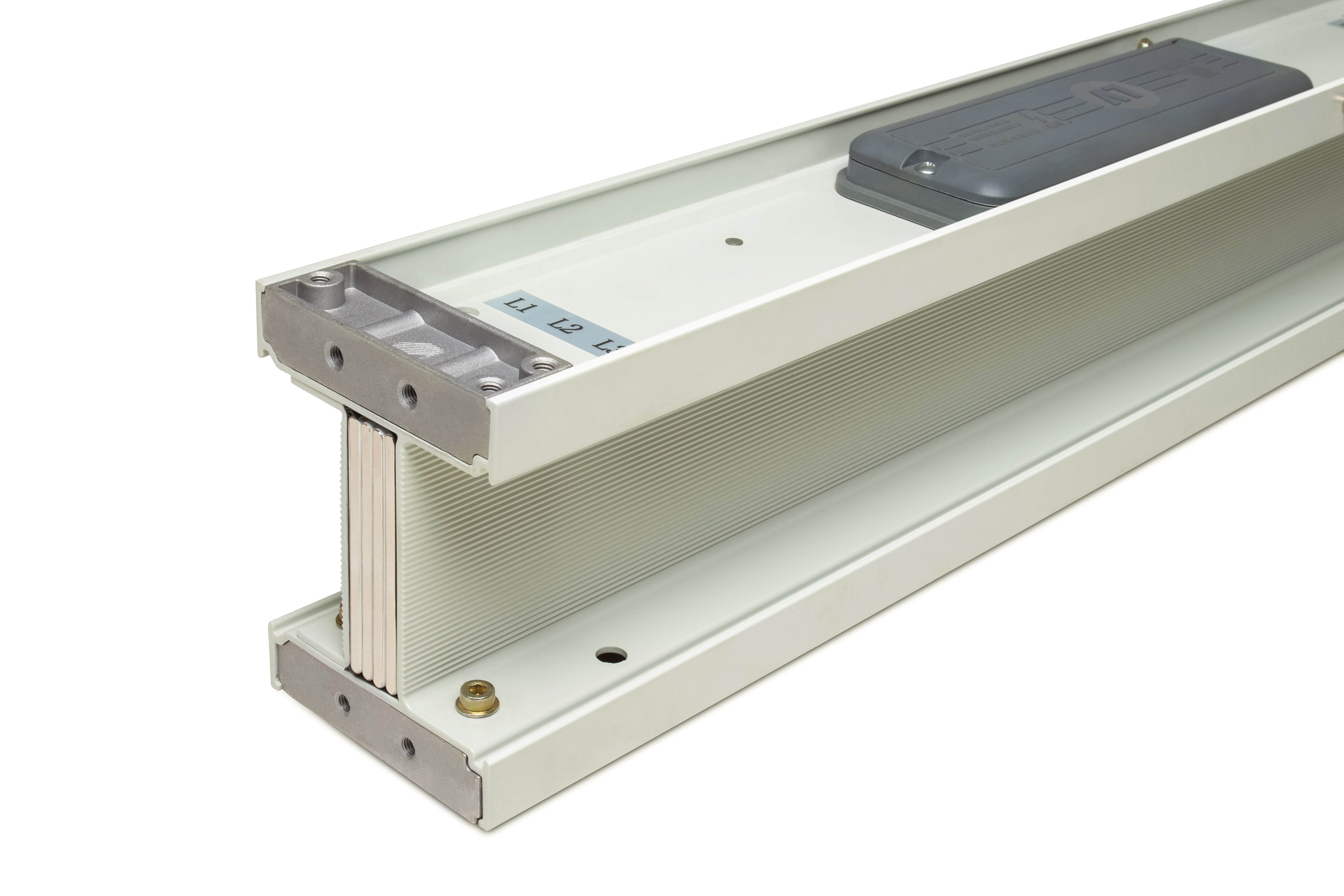

LV compact busway , Copper , Aluminium Conductor
